General Electric Super 7-C30 |
|
Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
New: 15 May 2010 |

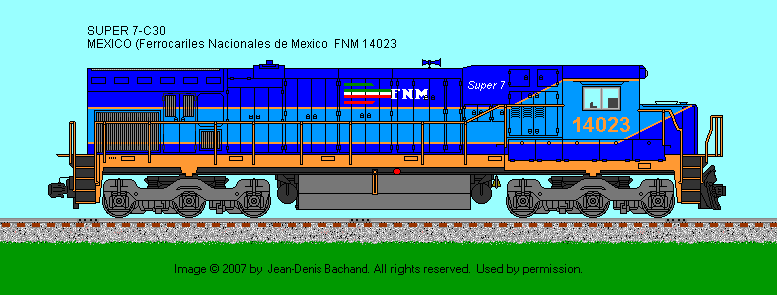

Drawing by: Jean-Denis Bachand |
New: 25 November 2007 |
Engine Builder: Cooper Bessemer |
Engine: 4-cycle Model 16FDL |
Bore & Stroke |
9" X 10.5" |
RPM (Maximum / Minimum) |
1000 / 400 |
Main Generator: GE - GTA-24 |
Horsepower: 3000 |
Gear Ratio: 83:20 |
Speed: 70 mph |
6-Wheel |
Configuration: C-C |
Traction Motor Blowers: Mech. |
Number: 2 |
Weight: 395,000 lbs |
Traction Motors: GE 752 (Six) |
Tractive Effort (starting) 91,600 lbs @ 25% |
Tractive Effort (continuous): 91,500 lbs @ 9.6 mph |
Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
Auxilary Generator: GE GY27 |
Alternator: GMG-146 |
Air Brake: Westinghouse |
Model: 26L |
Air Compressor: Westinghouse |
Model: 3CDC |
Quantity Built: 111
|
Dates: 5/1989 to 12/1993 |
- |
- |
Exterior Dimensions
| Super 7-C30 |
Total Length |
67'-03" |
Wheel Diameter |
40" |
Truck Wheel Base |
13'-07" |
Height to Hood Top |
15'-02.5" |
Height to Top Cab |
15'-10.5" |
Cab Width |
10'-02" |
Hood Width |
9'-01.5" |
Top of Walkway |
9'-11" |
Walkway Width |
5'-00" |
Center Bolster |
40'-11" |
Distance between Truck Centers |
54'-06" |
Leading Edge Front Truck to Front Pilot |
1'-07.5" |
Trailing Edge Rear Truck to Rear Pilot |
1'-07.5" |
Leading Edge Front Truck to Trailing Edge Rear Truck |
39'-11" |
Minimum Turning Radious |
21 degrees |
-
| - |
Fuel Oil: 3000
| Lubricating Oil: 380 |
Engine Cooling Water: 385
| Sand Capacity: 48 cu. ft. |
Options: |
-
| - |
